Application:
Mini-Span All-Dielectric Self Supporting (ADSS) fiber optic cable is designed for outdoor aerial and duct
applications in local net. Mini-Span includes fiber counts up to 144 cores optical
fibers and any type of combination of single-mode G652D fibers with the cable.
Pole-to-Pole span lengths range from 20m to 300m.  Please give me ADSS span and max wind speed of local or Maximum Allowable Tension get the ADSS design.


Design & Construction：
* S-Z stranded (up to 144 fibers)
*G652D optical fiber
*FRP  for center strength member
*Low attenuation, low dispersion, stable control of excess length makes the optical cable perfect mechanical and environmental properties.
*With simple structure easy to install
*PE or AT-PE sheath materials
*Designed in accordance with applicable industry technical specifications, standards and references including IEC and EN


---

Mechanical and Environmental Test.
IEC 60794-1-E1：Tensile Strength
IEC 60794-1-E3 ：Crush Test
IEC 60794-1-E4：Impact Test
IEC 60794-1-E6：Repeated Bending
IEC 60794-1-E7：Torsion
IEC 60794-1-F5B：Water Penetration
IEC 60794-1-F1：Temperature Cycling
IEC 60794-1-E14：Compound Flow

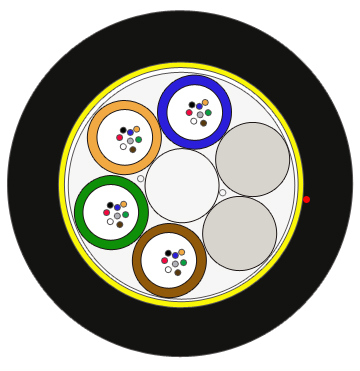

Fiber count:2~144

Loose tube:Colored fiber in PBT loose tube,filled with fiber gel

Central strength member:Non-metallic strength member FRP(fiber reinforce plastic rod)

Waterproof layer:Cable core filled with cable gel or water blocking tape,water blocking yarns

High-strength aramid yam:Offers very high tensile strength,small diameter and light weight to fit different climate consitions and laying spans

Sheath : Anti-tracking(AT) material or Polyethylene(PE)



Item		Parameter
Cable type		ADSS-PE/AT24B1-6.5kN(typical)
Fiber attenuation(B1)(dB/km)	1310nm	<0.36
	1550nm	<0.22
Nominal cable outer dia(mm)		9.6(typical)
Nominal thickness of outer sheath(mm)		>1.6
Cable weight(kg/km)		80~120
Young's modulus(GPa)(full cable cross-section)		8~20(depending on span,load,ect)
Thermal expansion coefficient(10-5/℃)		<10
Min.bending radius(mm)(D:cable dia)		Static:15D Dynamic:25D
Representative span(m)		100~300



---

---

---
