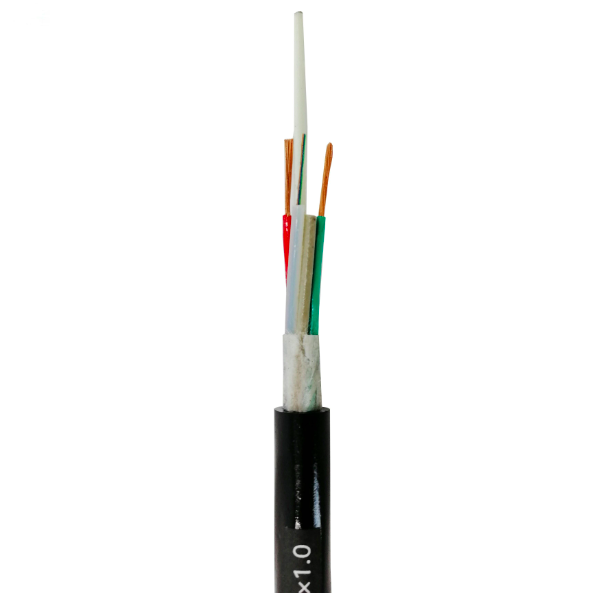

16 core fiber optic cable single mode 1.5mm2 electric composite cable G652D

1. 16G652D, optical fiber
2. FRP strength member
3. 1.5mm2  2 copper cable

+86-13868022777

Product Details



-JLOFC stranded optical fiber, electric cable loose tube cables are designed for outdoor use for campus, city and intercity backbones in duct installations.
-The SZ-stranded construction further reduces installation and environmental influences on the transmission
Application
Aerial
pipeline

Properties : Main mechanical properties
Max Tension(N)Max Crush Resistance (N/100mm)Min. Bend Radius
Long Short Long Short Installation Static
6001500600100020xOD10XOD


Environmental conditions
Temperature Range, Installation -20℃ + 70℃
Temperature Range, operation-40℃ + 70℃
Temperature Range, Storage -40℃ + 70℃


Design
Cable size
Fiber number 481216
Central ElementFRP
Fiber ColoringBule, Orange, Green, Brown
Fiber per tube4
Loose tube color codingBule, Orange, Green, Brown,
Number of rip cord1
Outer jacket material HDPE
Copper cable1.5mm2
OD (mm)11.211.211.211.2
Weight(kg/km)180180180179

Standards
Fiber StandardsTIA/EIA-492CAAB,IEC60793-2-50 Type B1.3, ITU-T G.652.D ISO/IEC11801 Ed2.2
Water blockingIEC 60794-1-2 F5

Fiber Single-mode ITU G.652.D
Max Attenuation1310nm/1383nm/1550nm0.36dB/km/0.36dB/km/0.22dB/km
