Application:

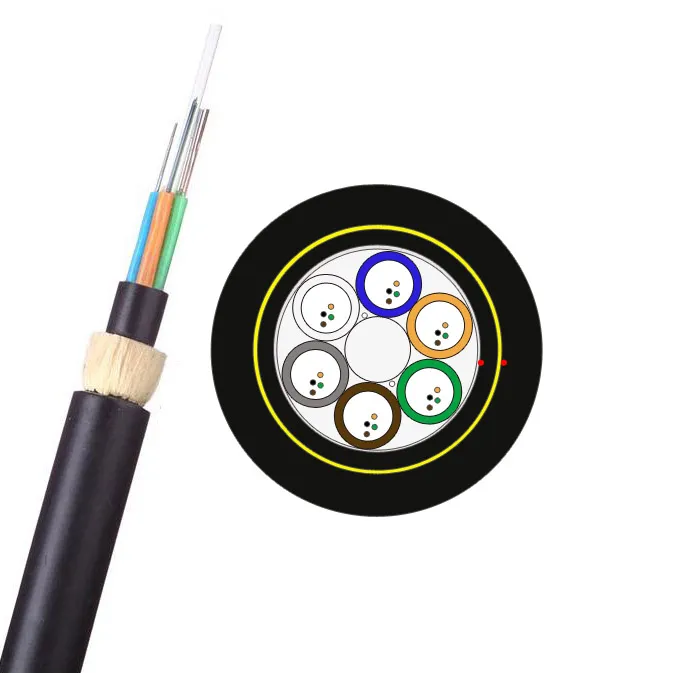

ADSS All Dielectric self supporting optical fiber cable are lightweight with small diameter and designed for  aerial installation with lashing method. The loose tube design with a FRP member and steel tape for provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber.



Design & Construction£º
* S-Z stranded (up to 144 fibers)
*G652D optical fiber
*FPR  for center strength member
*Low attenuation, low dispersion, stable control of excess length makes the optical cable perfect mechanical and environmental properties.
*With simple structure easy to install
*PE or AT-PE sheath materials
*Designed in accordance with applicable industry technical specifications, standards and references including IEC and EN


---

Mechanical and Environmental Test.
IEC 60794-1-E1£ºTensile Strength
IEC 60794-1-E3 £ºCrush Test
IEC 60794-1-E4£ºImpact Test
IEC 60794-1-E6£ºRepeated Bending
IEC 60794-1-E7£ºTorsion
IEC 60794-1-F5B£ºWater Penetration
IEC 60794-1-F1£ºTemperature Cycling
IEC 60794-1-E14£ºCompound Flow



Fiber count:2~144

Loose tube:Colored fiber in PBT loose tube,filled with fiber gel

Central strength member:Non-metallic strength member FRP(fiber reinforce plastic rod)

Waterproof layer:Cable core filled with cable gel or water blocking tape,water blocking yarns

High-strength aramid yam:Offers very high tensile strength,small diameter and light weight to fit different climate consitions and laying spans

Jacket : Anti-tracking(AT) material or Polyethylene(PE)














Item		Parameter
Cable type		ADSS
Fiber attenuation(B1)(dB/km)	1310nm	<0.35
	1550nm	<0.20
Nominal cable outer dia(mm)		13(typical)
Nominal thickness of outer sheath(mm)		>1.7
Cable weight(kg/km)		80~180
Young's modulus(GPa)(full cable cross-section)		8~20(depending on span,load,ect)
Thermal expansion coefficient(10-5/¡æ)		<10
Min.bending radius(mm)(D:cable dia)		Static:15D Dynamic:25D
Representative span(m)		80~500



---

The end of tension clamp	Suspending clamp(single wire)	Spiral vibration reducer
Vibration Damper	Screw damping ring	OPPC
Splice closure	Suspension clamp	Cable rack
Wire clip	Hoop	Fixation accessoires



---

---

Immediately get factory price.....

1. 100% competitive factory price
2. Professional£º24 years focus on optical fiber cable and optical fiber
3. OEM£ºOEM and Tender support for more than 50 enterprises
4. Reliable£ºMore than 7,600,000 cores km steady supplied every year
5. ISO9001, ISO14000, OHSMS18001,CE, TLC etc certificate
6. Our products used by more than 21 country customers

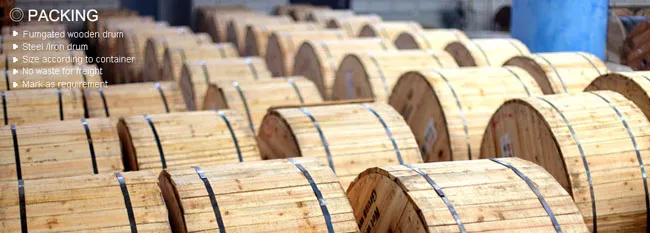

Packing
