Catalog-JLOFC-Outdoor.pdf
JLOFC- DOU-ADSS Fiber optic cable 2,4,8,12,24,36,48,72,96,144 CORES,
Application Aerial
-JLOFC stranded ADSS cables are designed for outdoor use for campus, city and intercity backbones in Aerial installations.-The SZ-stranded construction further reduces installation and environmental influences on the transmission parameters and allow big-span Properties : Main mechanical properties| Max Tension(N) | Max Crush Resistance (N/100mm) | Min. Bend Radius |
| MAT | RTS | Long | Short | Installation | Static |
| 6.12 | 15.3KN | 2000 | 1000 | 20xOD | 10XOD |
Environmental conditions| Temperature Range, Installation | -20℃ + 70℃ |
| Temperature Range, operation | -40℃ + 70℃ |
| Temperature Range, Storage | -40℃ + 70℃ |

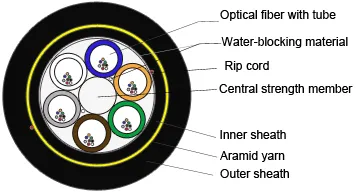

Design| Cable size |
|
|
|
|
|
| Fiber number | 2-12 | 24 | 36 | 48 | 72 | 96 | 144 |
| Central Element | FRP |
|
|
|
|
|
|
| Fiber Coloring | Bule, Orange, Green, Brown,Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fiber per tube | 12 |
| Loose tube color coding | Bule, Orange, Green, Brown,Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Number of rip cord | 2 |
|
|
|
|
|
|
| Inner jacket | PE,AT-PE |
|
|
|
|
|
|
| Span(m) | 200m |
| Outer jacket material | PE ,AT-PE |
|
|
|
|
|
|
| Tape | Water-swellable |
| OD (mm) | 11.1 | 11.1 | 11.1 | 12.6 | 12.6 | 14.0 | 16.9 |
| Weight(kg/km) | PE Jacket | 95 | 95 | 95 | 124 | 125 | 149 | 218 |
| AT-Jacket | 121 | 121 | 121 | 155 | 155 | 184 | 262 |
Standards| Fiber Standards | TIA/EIA-492CAAB,IEC60793-2-50 Type B1.3, ITU-T G.652.D ISO/IEC11801 Ed2.2 |
| Water blocking | IEC 60794-1-2 F5 |
| Fiber | Single-mode ITU G.652.D |
| Max Attenuation | 1310nm/1383nm/1550nm | 0.36dB/km/0.36dB/km/0.22dB/km |
ADSS Hardware fittings
 |  |  |

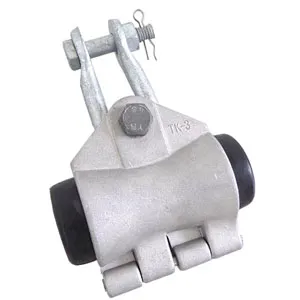

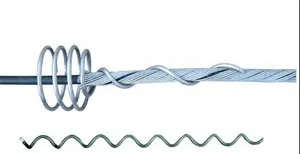

| The end of tension clamp | Suspending clamp(single wire) | Spiral vibration reducer |
 |  |  |

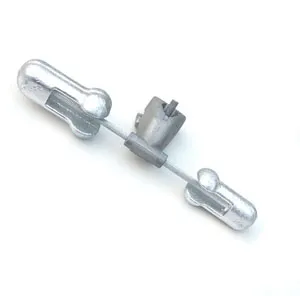

| Vibration Damper | Screw damping ring | OPPC |
 |  |  |

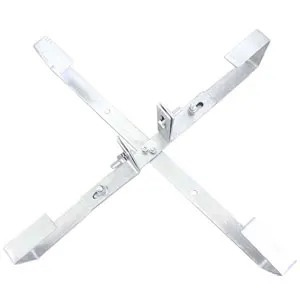

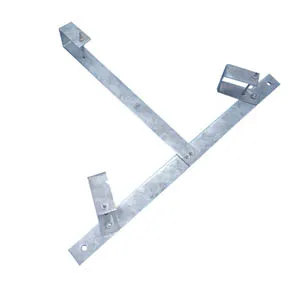

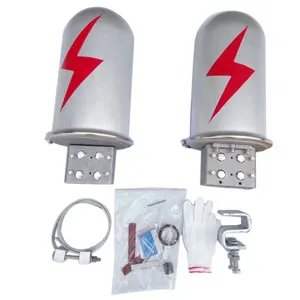

| Splice closure | Suspension clamp | Cable rack |
 |  |  |

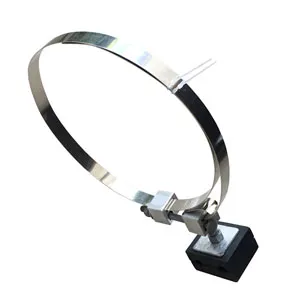

| Wire clip | Hoop | Fixation accessoires |
