G652D-Duct Micro Cable.pdf
JLOFC Microduct fiber optic cable details
Application:
- Central Strength Member (CSM): glass fibers reinforced plastic material (GRP), oversheating when needed.
- Micro-modules: PBT material containing 12 optical fibers and filled with a suitable water tightness compound with easy strip ability.
- Stranding: flex tubes, SZ stranded around the CSM.
- Longitudinal Water Tightness: water swellable materials (dry core).
- Outer Sheath: HDPE, And ripcord beneath
Outer Sheath: HDPE, one ripcord beneath.
Mechanical and Environmental Test.
IEC 60794-1-E1：Tensile Strength
IEC 60794-1-E3 ：Crush Test
IEC 60794-1-E4：Impact Test
IEC 60794-1-E6：Repeated Bending
IEC 60794-1-E7：Torsion
IEC 60794-1-F5B：Water Penetration
IEC 60794-1-F1：Temperature Cycling
IEC 60794-1-E14：Compound Flow

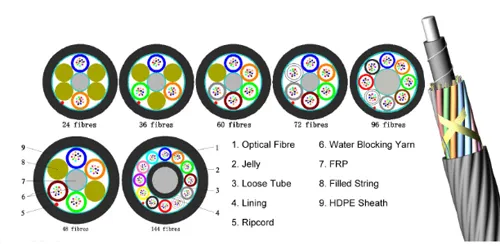

| Construction and Parameter Items | Descriptions |
| Optical fiber (G652D/G657A1) | 12C | 24C | 36C | 48C | 72C | 96C | 144C |
Micro-module | Fibers per tube | 12 |
| Loose tube NO | 1 | 2 | 3 | 4 | 6 | 8 | 12 |
| Filler number | 5 | 4 | 3 | 2 | 0 |
| CSM /Enlargement | Material | FRP |
Outer sheath | Material | HDPE |
| Thickness （mm） | Nominal:0.5±0.1mm |
| Cable nominal diameter（±0.2mm） | 5.6 | 6.2 | 8.0 |
| Cable approx. weight (±4kg/km) | 27 | 27 | 27 | 27 | 27 | 40 | 54 |
| Tensile strength -Max(N) | 500 | 1000 |
| Max Crushing Resistance( N/100mm) | 800 |
Minimum Bending radius | Under Maximum
Tension | 12.5x Cable Diameter |
| Without Tension: | 20x Cable Diameter |
Temperature range | Installation | -10℃～＋50℃ |
| Storage | -40℃～＋70℃ |
| Operation | -30℃～＋70℃ |
All sizes and proformance values can be specified by customer.
