Application:
JINLONG Single Jacket non metal cables are lightweight with small diameter and designed for duct and aerial installation with lashing method. The loose tube design with a FRP member for provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber.

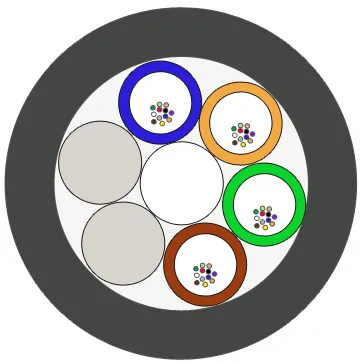

Design & Construction£º
* S-Z stranded (up to 288 fibers)
* G652D optical fiber
* FPR  for center strength member
* Low attenuation, low dispersion, stable control of excess length makes the optical cable perfect mechanical and environmental properties.
* With simple structure easy to install
* PE or LSZH sheath materials
* Designed in accordance with applicable industry technical specifications, standards and references including IEC and EN


---

Mechanical and Environmental Test.
IEC 60794-1-E1£ºTensile Strength
IEC 60794-1-E3 £ºCrush Test
IEC 60794-1-E4£ºImpact Test
IEC 60794-1-E6£ºRepeated Bending
IEC 60794-1-E7£ºTorsion
IEC 60794-1-F5B£ºWater Penetration
IEC 60794-1-F1£ºTemperature Cycling
IEC 60794-1-E14£ºCompound Flow


---

Typical Parameters

Fiber count	Cable OD (mm)	Cable weight(kg/km)	Min.bending radius(mm)		Permissible tensile force(N)		Permissible pressure force(N/100mm)
			Static	Dynamic	Short-term	Long-term	Short-term	Long-term
2-36	9.4	75	10D	20D	1500	600	1000	300
38-72	10.0	85	10D	20D	1500	600	1000	300
74-84	10.7	100	10D	20D	1500	600	1000	300
86-96	12.5	110	10D	20D	1500	600	1000	300
98-108	11.3	122	10D	20D	1500	600	1000	300
132-144	14.0	165	10D	20D	1500	600	1000	300
288	16.8	241	10D	20D	1500	600	1000	300
"D" is cable diameter.


All sizes and proformance values can be specified by customer.

---
