Manufacturer 2 to 288 cores Direct Burial Fiber Optic Cable
1. G652D,G657A1 optical fiber
2. OEM and ODM
3. ISO9001 CE
Product Details
Environmental conditions
| Temperature Range, Installation | -20℃ + 70℃ |
| Temperature Range, operation | -40℃ + 70℃ |
| Temperature Range, Storage | -40℃ + 70℃ |
Properties : Main mechanical properties
| Max Tension(N) | Max Crush Resistance (N/100mm) | Min. Bend Radius | |||
| Long | Short | Long | Short | Installation | Static |
| 1000 | 3000 | 1000 | 3000 | 20xOD | 10XOD |
Standards
| Fiber Standards | TIA/EIA-492CAAB,IEC60793-2-50 Type B1.3, ITU-T G.652.D ISO/IEC11801 Ed2.2 |
| Water blocking | IEC 60794-1-2 F5 |
| Fiber | Single-mode ITU G.652.D G657A1 | |
| Max Attenuation | 1310nm/1383nm/1550nm | 0.36dB/km/0.36dB/km/0.22dB/km |

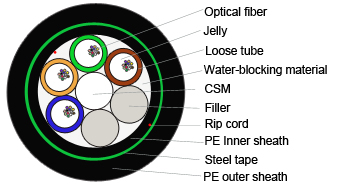

Design
| Cable size | |||||||
| Fiber number | 12 | 24 | 36 | 48 | 72 | 96 | 144 |
| Central Element | FRP | ||||||
| Fiber Coloring | Bule, Orange, Green, Brown,Slate, White, Red, Black, Yellow, Violet, Rose, Aqua | ||||||
| Fiber per tube | 12 | ||||||
| Loose tube color coding | Bule, Orange, Green, Brown,Slate, White, Red, Black, Yellow, Violet, Rose, Aqua | ||||||
| Number of rip cord | 2 | ||||||
| Inner jacket material | HDPE | ||||||
| Armour | Corrugated steel tape | ||||||
| Outer jacket material | HDPE | ||||||
| Water blocking | Water-blocking jelly | ||||||
| OD (mm) | 12.4 | 12.4 | 12.4 | 13.9 | 13.9 | 15.3 | 18.2 |
| Weight(kg/km) | 140 | 140 | 140 | 177 | 177 | 218 | 319 |
Mechanical and Environmental Test.
IEC 60794-1-E1：Tensile Strength
IEC 60794-1-E3 ：Crush Test
IEC 60794-1-E4：Impact Test
IEC 60794-1-E6：Repeated Bending
IEC 60794-1-E7：Torsion
IEC 60794-1-F5B：Water Penetration
IEC 60794-1-F1：Temperature Cycling
IEC 60794-1-E14：Compound Flow
All sizes and proformance values can be specified by customer
