Application:
JINLONG double Jacket  and double Armored cables are designed for direct burial installation with lashing method. The loose tube design with a metallic strength member and dluble jacket for provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber.

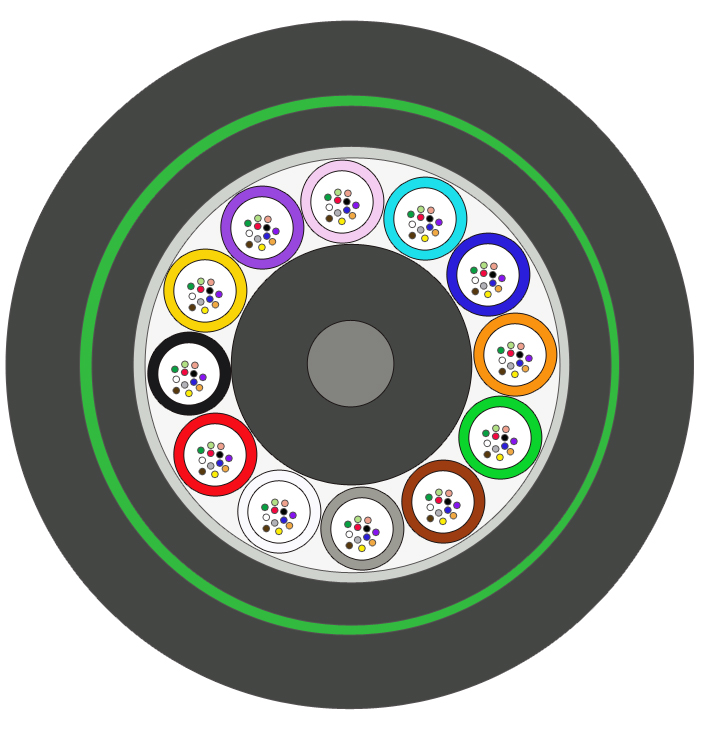

Design & Construction：
* S-Z stranded (up to 288 fibers)
*G652D optical fiber
*metallic armored corrugated steel tape and aluminum tape
*Steel wire center strength member
*Low attenuation, low dispersion, stable control of excess length makes the optical cable perfect mechanical and environmental properties.
*With simple structure easy to install
*PE double sheath materials
*Designed in accordance with applicable industry technical specifications, standards and references including IEC and EN


---

Mechanical and Environmental Test.
IEC 60794-1-E1：Tensile Strength
IEC 60794-1-E3 ：Crush Test
IEC 60794-1-E4：Impact Test
IEC 60794-1-E6：Repeated Bending
IEC 60794-1-E7：Torsion
IEC 60794-1-F5B：Water Penetration
IEC 60794-1-F1：Temperature Cycling
IEC 60794-1-E14：Compound Flow


---

Typical Parameters

Fiber count	Cable outer dia(mm)	Cable weight(kg/km)	Min.bending radius(mm)		Permissible tensile force(N)		Permissible pressure force(N/100mm)
			Static	Dynamic	Short-term	Long-term	Short-term	Long-term
2-36	13.3	183	12.5D	25D	3000	1000	3000	1000
38-72	14.6	221	12.5D	25D	3000	1000	3000	1000
86-96	16.0	271	12.5D	25D	3000	1000	3000	1000
132-144	19.0	376	12.5D	25D	3000	1000	3000	1000
"D" is cable diameter.


All sizes and proformance values can be specified by customer

---
