Application:
JINLONG self supporting FTTH cable designed for direct to home, office.

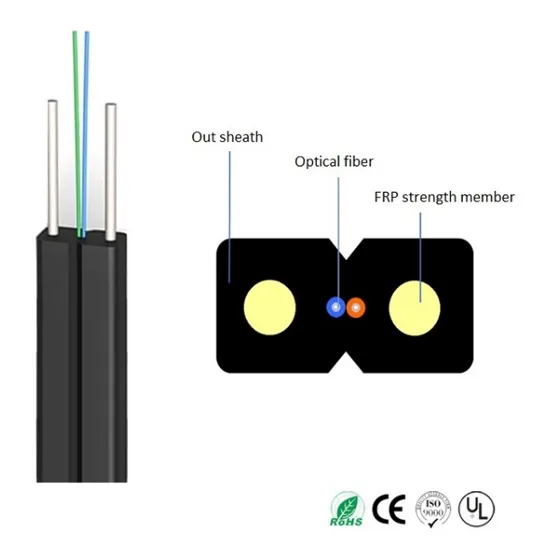

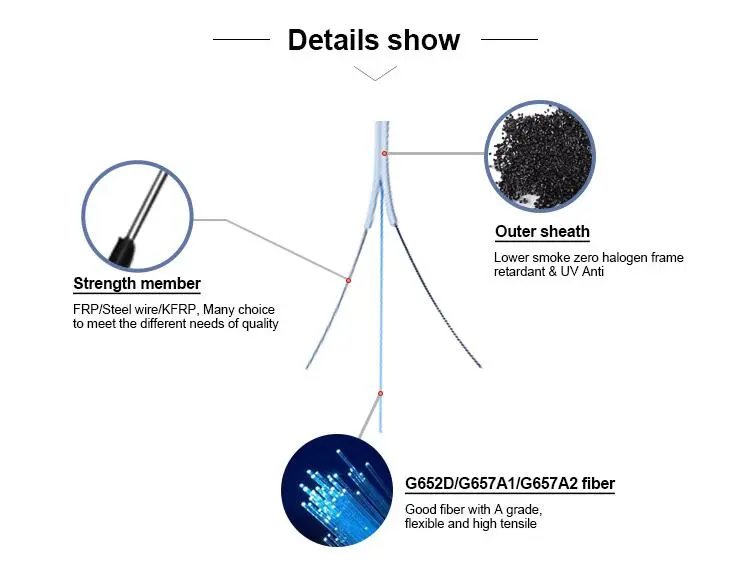

Typical Parameters
| Optical Fiber Type * | ITU T G657A1/G657A2/ G652D |
| Strength member | Two Steel wire with diameter of 0.5mm |
| Minimal pull tension strength, N | 80N / 40N (short term/long term) |
| Minimal crush pressure, N/100mm | 1000/100mm |
| Jacket | LSZH black color |
| Minimal bending radius, n x Ø |
| 10 |
Temperature | Installation | -15oC ~ 40oC |
| Operation/Storage | -40oC ~ 60oC |
Cable Type | Cable Diamter(mm) | Weight (kg/km) | Tensile strength(N) | Crush Resistance(N/100mm) | Minimum bending radius (mm) |
Short-term | Long-term | Short-term | Long-term | Short-term | Long-term |
GJFH-1 | 2.0*3.0 | 9 | 80 | 40 | 1000 | 500 | 20D | 10D |
GJFH-2 | 2.0*3.0 | 9 | 80 | 40 | 1000 | 500 | 20D | 10D |
GJFH-4 | 2.0*3.2 | 9 | 80 | 40 | 1000 | 500 | 20D | 10D |
| Immediately get factory price..... |
1. 100% competitive factory price
2. Professional：24 years focus on optical fiber cable and optical fiber
3. OEM：OEM and Tender support for more than 50 enterprises
4. Reliable：More than 15,000,00 cores km steady supplied every
5. ISO9001, CE, TLC etc certificate
6. Our products used by more than 21 country customers
Application:
JINLONG self supporting FTTH cable designed for direct to home, office.
Typical Parameters
Optical Fiber Type * ITU T G657A1/G657A2/ G652D
Strength member Two Steel wire with diameter of 0.5mm
Minimal pull tension strength, N 80N / 40N (short term/long term)
Minimal crush pressure, N/100mm 1000/100mm
Jacket LSZH black color
Minimal bending radius, n x Ø 10
Temperature Installation -15oC ~ 40oC
Operation/Storage -40oC ~ 60oC
Cable Type
Cable Diamter(mm)
Weight (kg/km)
Tensile strength(N)
Crush Resistance(N/100mm)
Minimum bending radius (mm)
Short-term
Long-term
Short-term
Long-term
Short-term
Long-term
GJFH-1
2.0*3.0
9
80
40
1000
500
20D
10D
GJFH-2
2.0*3.0
9
80
40
1000
500
20D
10D
GJFH-4
2.0*3.2
9
80
40
1000
500
20D
10D
Immediately get factory price.....
1. 100% competitive factory price
2. Professional：24 years focus on optical fiber cable and optical fiber
3. OEM：OEM and Tender support for more than 50 enterprises
4. Reliable：More than 15,000,00 cores km steady supplied every
5. ISO9001, CE, TLC etc certificate
6. Our products used by more than 21 country customers
