Application:

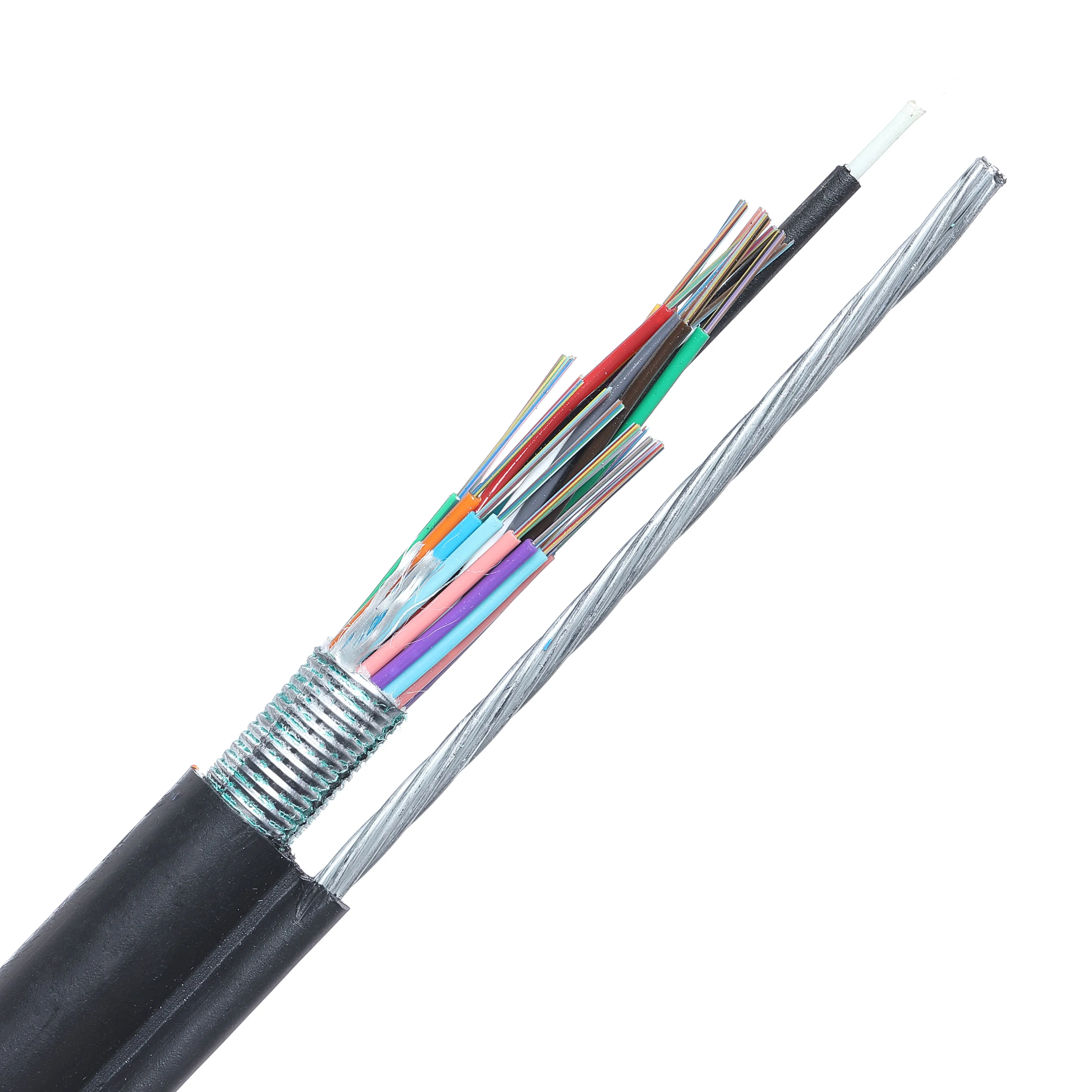

JINLONG self supporting steel tape Armored cables are lightweight with small diameter and designed for  aerial installation with lashing method. The loose tube design with a FRP member and steel tape for provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber.



Design & Construction£º
* S-Z stranded (up to 288 fibers)
* G652D optical fiber
* Metallic armored
* FPR  for center strength member, steel strand messager
* Low attenuation, low dispersion, stable control of excess length makes the optical cable perfect mechanical and environmental properties.
* With simple structure easy to install
* PE or LSZH sheath materials
* Designed in accordance with applicable industry technical specifications, standards and references including IEC and EN


---

Mechanical and Environmental Test.
IEC 60794-1-E1£ºTensile Strength
IEC 60794-1-E3 £ºCrush Test
IEC 60794-1-E4£ºImpact Test
IEC 60794-1-E6£ºRepeated Bending
IEC 60794-1-E7£ºTorsion
IEC 60794-1-F5B£ºWater Penetration
IEC 60794-1-F1£ºTemperature Cycling
IEC 60794-1-E14£ºCompound Flow


---

Typical Parameters

Fiber count	Cable size (mm)	Cable weight (kg/km)	Min.bending radius (mm)		Permissible tensile force (N)		Permissible pressure force (N/100mm)
			Static	Dynamic	Short-term	Long-term	Short-term	Long-term
2-36	10.5*17.9	173	10D	20D	6000	3000	1000	300
38-72	11.1*18.5	187	10D	20D	6000	3000	1000	300
74-84	11.9*19.3	203	10D	20D	6000	3000	1000	300
86-96	12.5*19.9	218	10D	20D	6000	3000	1000	300
98-108	13.2*20.6	233	10D	20D	6000	3000	1000	300
132-144	15.3*22.7	286	10D	20D	6000	3000	1000	300
"D" is cable diameter.


All sizes and proformance values can be specified by customer.

---
