Application:
JINLONG Single loose tube cables are lightweight with small diameter and designed for duct and aerial installation with lashing method. The double steel wire design for provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber.

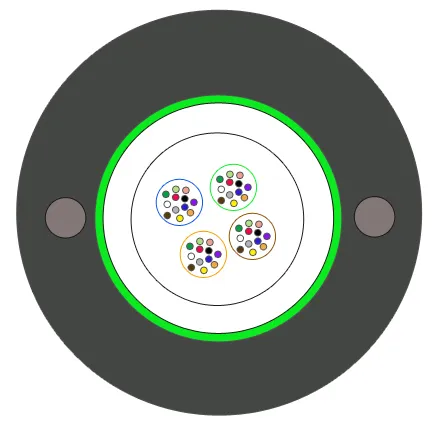

Design & Construction：
*Single tube design (up to 48 fibers)
*G652D optical fiber
*Double steel wire strength member
*Low attenuation, low dispersion, stable control of excess length makes the optical cable perfect mechanical and environmental properties.
*With simple structure easy to install
*PE sheath materials
*Designed in accordance with applicable industry technical specifications, standards and references including IEC and EN
Mechanical and Environmental Test.
IEC 60794-1-E1：Tensile Strength
IEC 60794-1-E3 ：Crush Test
IEC 60794-1-E4：Impact Test
IEC 60794-1-E6：Repeated Bending
IEC 60794-1-E7：Torsion
IEC 60794-1-F5B：Water Penetration
IEC 60794-1-F1：Temperature Cycling
IEC 60794-1-E14：Compound Flow
Typical Parameters
| Fiber count | Cable OD (mm) | Cable weight(kg/km) | Min.bending radius(mm) | Permissible tensile force(N) | Permissible pressure force(N/100mm) |
| Static | Dynamic | Short-term | Long-term | Short-term | Long-term |
| 2-12 | 8.0 | 70 | 10D | 20D | 1500 | 600 | 1000 | 300 |
| 14-24 | 8.7 | 81 | 10D | 20D | 1500 | 600 | 1000 | 300 |
| 26-36 | 9.4 | 95 | 10D | 20D | 1500 | 600 | 1000 | 300 |
| 38-48 | 10 | 105 | 10D | 20D | 1500 | 600 | 1000 | 300 |
| "D" is cable diameter. |
All sizes and performance values can be specified by Customer
